HSI Features
The Rotoflex HSI features a flexible format and simplified workflow with the URC 2.0 Control System and eDrive 2.0.
URC 2.0 Control System Report Management System (RMS) production analysis tool
High-performance processor
Most advanced defect detection system available
Linear – independent stream count
MMLD – 100% missing matrix and label detection
Precise fault placement at editing table
Automatic calibration reduces set-up time and waste
eDrive 2.0 Better use of power which results in better roll characteristics
Seamless roll quality at any speed and with any speed changes
Faster acceleration and deceleration with maximum control
Increases production effectiveness and preserves roll quality
Product Overview Video

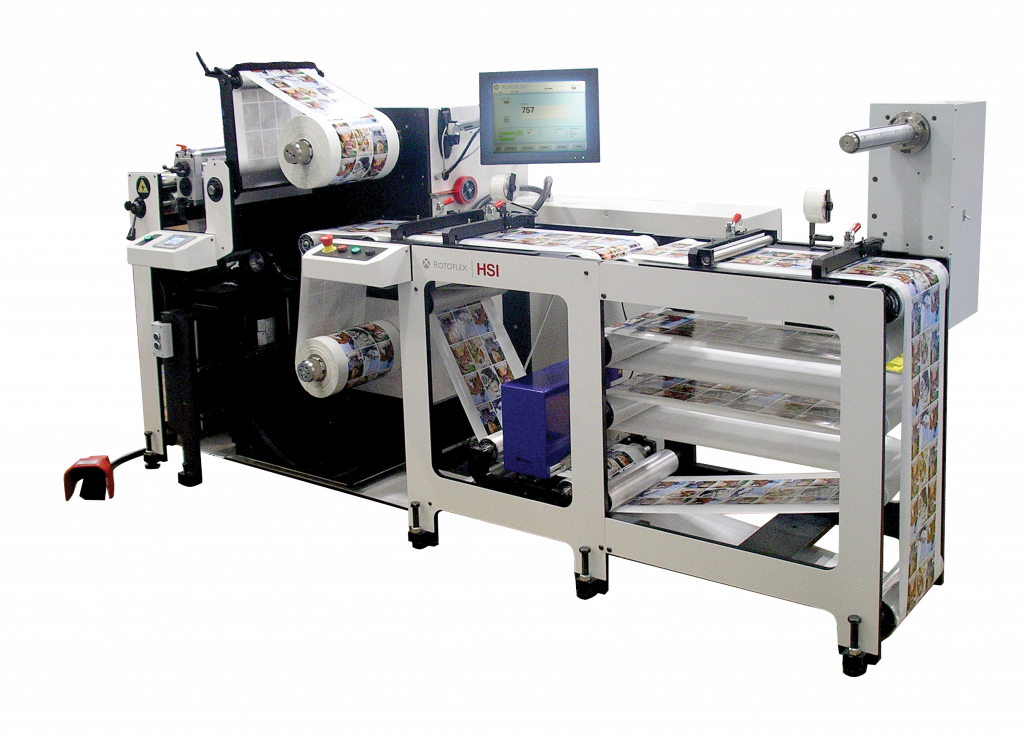

Designed with the proven robust construction of our successful VSI series, the HSI is an advantageous solution for converters preferring a horizontal slitting inspection configuration in their off-line finishing machines.
HSI Technical Specifications
Web Width
13.25/17.25 in (330/440 mm)
Max Speed
1000 fpm (305 mpm) dependent on application
Max Unwind Diameter
30 inch (762 mm)
Rewind Capacity
20 inch (508 mm)
Drive System
Servo & Rotoflex eDrive 2.0
Options
Crush, Shear, or Razor Slitter
Slitter Cartridges
Anti Static Equipment
Clear-on-Clear Label Count
Matrix and Missing Label Detection
Flag & Splice Detection
Roll Lift
LED Strobe
Waste Wind-Up
Variable Data Printing
Complete Range of Inspection Systems
