What Defines a DLI?
Precision The DLI's premium modular die station design promises high-speed accuracy, faster operating speeds and increased flexibility for many finishing processes.
Automation A Report Management System (RMS), automatic label repeat length detection, and optimized label counting – multi-lane, various sizes & shapes, plus automatic set-up and sensor calibration are just a few of the features that give the DLI an automated edge.
Power Efficient use of power preserves roll quality at top speeds. Our proprietary control system gives the finishing asset faster acceleration and deceleration with maximum control.
[VIDEO] DLI 500 in Action

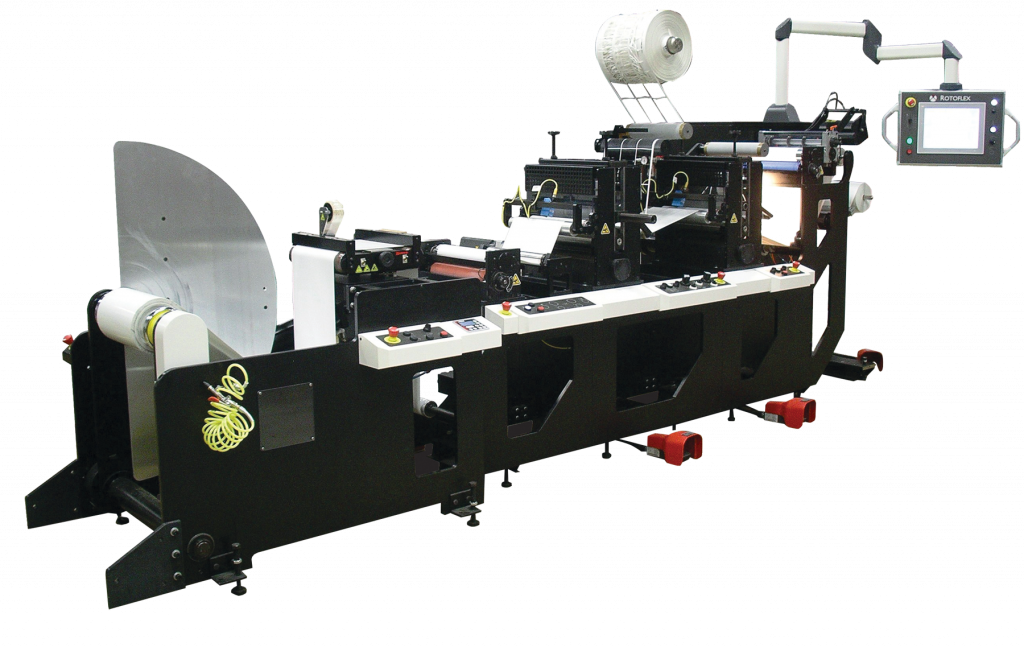

This Rotoflex DLI 500 is a 20 inch / 500mm web width off line finishing solution ideal for blank label die cutting. The machine is configured with two servo-driven die stations, one die cutting and the other perforating. The machine is rated to run at speeds up to 750 fpm (230mpm). Highlighted in this video is consistent, accurate perforating at high run speeds.
[VIDEO] DLI 330 at Top Speeds
DLI Technical Specifications
Web Width
13.25/20.25 inch (330/500 mm)
Max Speed
750 fpm (230 mpm) *application dependent
Options
Automatic Unwind Butt Splicer
Automatic Turret Rewind
Dual Rewind
Full In-Register Die Cutting
Matrix Rewind
Premium Die Station
Razor or Shear Slitting
Slitter Cartridge
Underscore Unit
