An Attainable Inkjet Platform with Inline Processing

checkmark iconMaximum Performance

Digital Series iQ is a fully integrated digital hybrid solution with production speeds up to 230 FPM. That means zero throughput compromise for inline decorating and converting - a gamechanger for profitability metrics.

checkmark iconAffordable Productivity

An attractive investment level and low cost to print position Digital Series iQ as the ideal solution for converters interested in single pass, production-level digital hybrid printing.

checkmark iconFuture-Proof Options

Digital Series iQ provides options to grow with your investment through the flexibility provided by Mark Andy Evolution Series technology. This platform unlocks the hybrid capabilities needed for success at any point in your business.

checkmark iconExpanded Range

With a large library of validated materials and up to 7 UV inkjet colors (CMYKOV+WW), Digital Series iQ enables a wide range of label and packaging applications.

checkmark iconEfficient Die Cutting

The utilization of VDC-SR allows for pressroom efficiency by slashing changeover time by 80%, freeing up operator availability for increased throughput.

checkmark iconGuaranteed Support

Our team provides comprehensive training through the entire product lifecycle: before, during, and after installation. Beyond technical assistance, the Mark Andy team will work with you to optimize internal processes and business development strategies around your new technology so you can generate more work and revenue with less time, labor, and waste.

Uncover Your Potential with Digital Hybrid

Technical Specifications

Printing Process

CMYK +WW UV Inkjet Powered by Domino
(OV Upgrade Available)

Resolution

600 x 600 dpi native Kyocera print heads

White Ink Opacity

72% Opacity

Speed

High-Quality Mode: Up to 164 fpm (50 mpm)
High-Speed Mode: Up to 230 fpm (70 mpm)

Workflow

Esko DFE
Mark Andy ScreenPro

Web Width

13 inch (330 mm) max
8 inch (203 mm) min

Die Repeat Range

24 inch (610 mm) maximum repeat in full rotary or semi-rotary mode

Substrate Range

Pressure sensitive papers and films, unsupported papers & films, tag stocks, light carton and more

Drying & Curing

UV

Environment

Optimal temperature range: 68-72°F (20-22˚C)
Ink Storage: 68-77°F (20-25˚C)
Humidity level range: 40-60%
Dust controlled environment

Roll Capacity

Unwind and rewind: 40” diameter (1000 mm)
Maximum roll weight: 100 lbs (300 kg)

Digital Label Production, Affordably

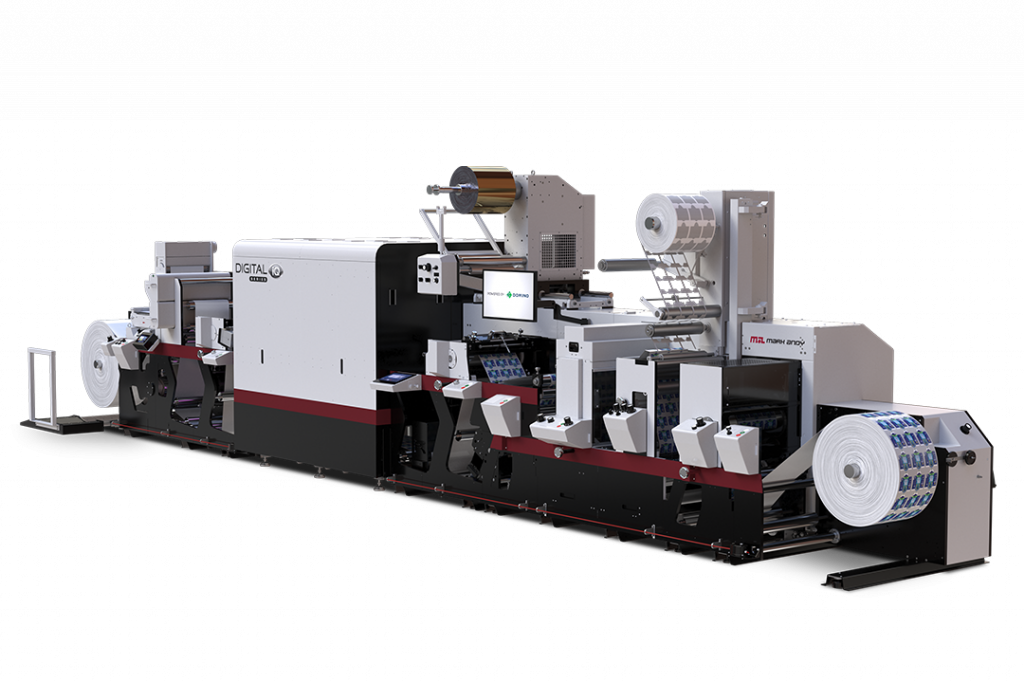

Having the right equipment that allows you to service to a larger segment of the label market provides maximum profitability. Having the right partners by your side means the sky's the limit. Built on a proven Evolution Series flexo platform for inline decorating and converting, powered by a robust Domino N6101i UV inkjet module, Digital Series iQ boasts digital brain power and Mark Andy converting excellence.

  • Tactile icon Pressure Sensitive Prime Labels
  • Shrink icon Shrink Sleeves
  • Durables icon Durable Tags & Labels
  • Light Carton icon Light Carton
  • Variable Data icon Variable Data Printing
  • Specialty Labels Specialty Goods
  • Health and Beauty icon Health & Beauty Market Segment
  • Labels icon Industrial Labels
  • Film icon Film (Supported & Unsupported)
